C-Series -How to Configure V-Cam View

  • Updated

This article applies to

C-12

C-08

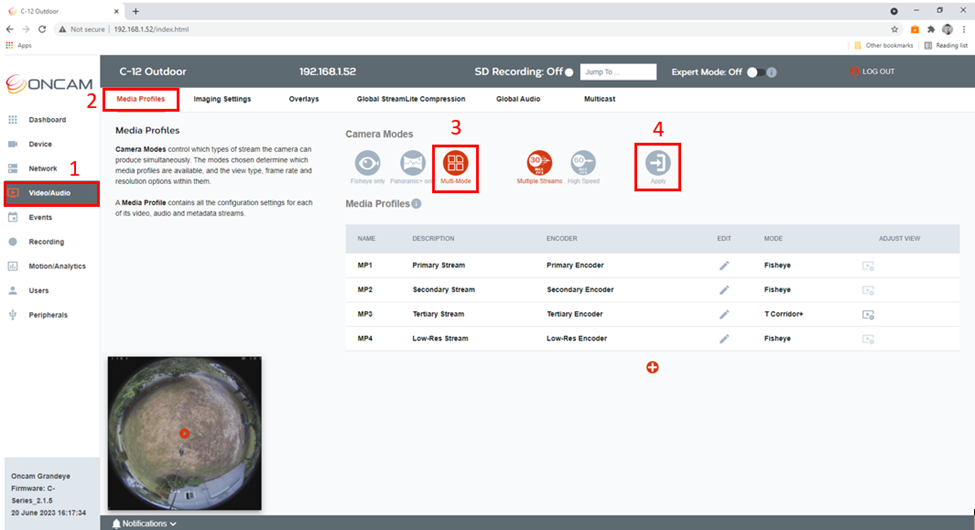

  1. Select Video/Audio.

  2. Select Media Profiles.

  3. Select Multi-Mode.

  4. Click Apply.


After camera is back online navigate back to Video/Audio>Media Profiles.

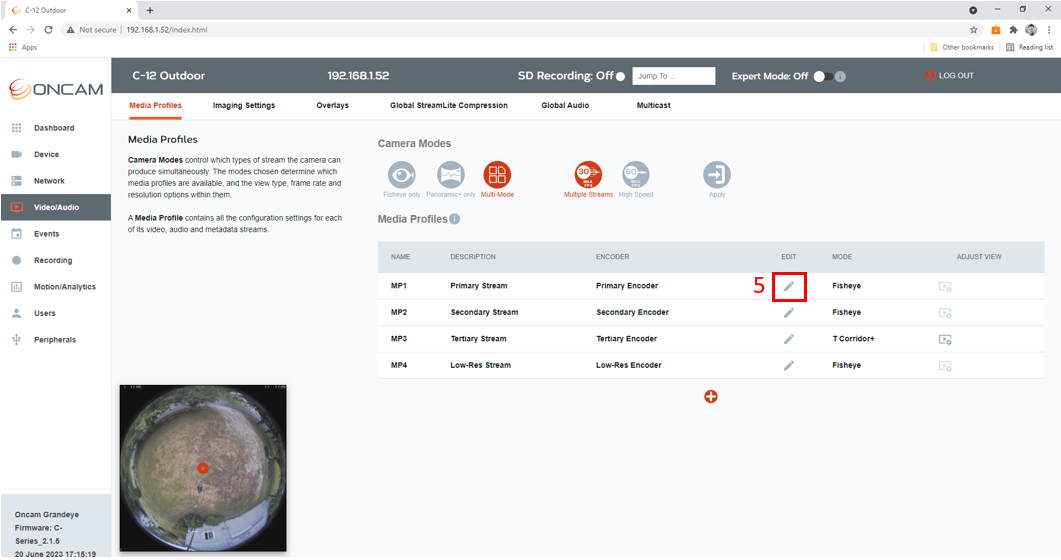

5. Select the Edit icon for the media profile that will be used.


6. Under the Video Source tab, select V-Cam.

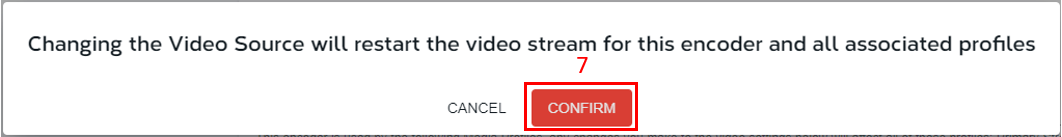

7. Click Confirm to make the changes.

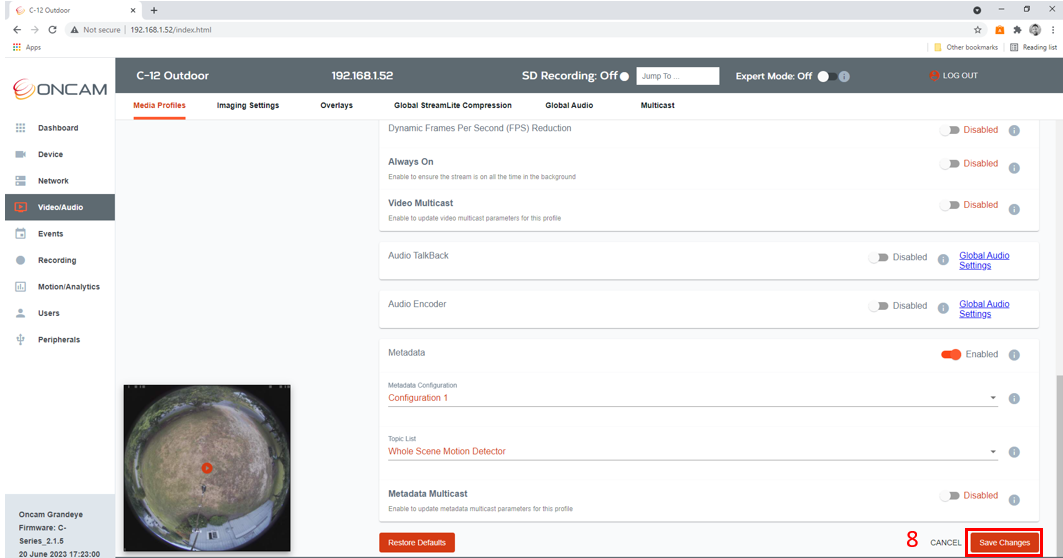

8. Scroll down to the bottom of the page and Save Changes.


Navigate back to Video/Audio>Media Profiles.

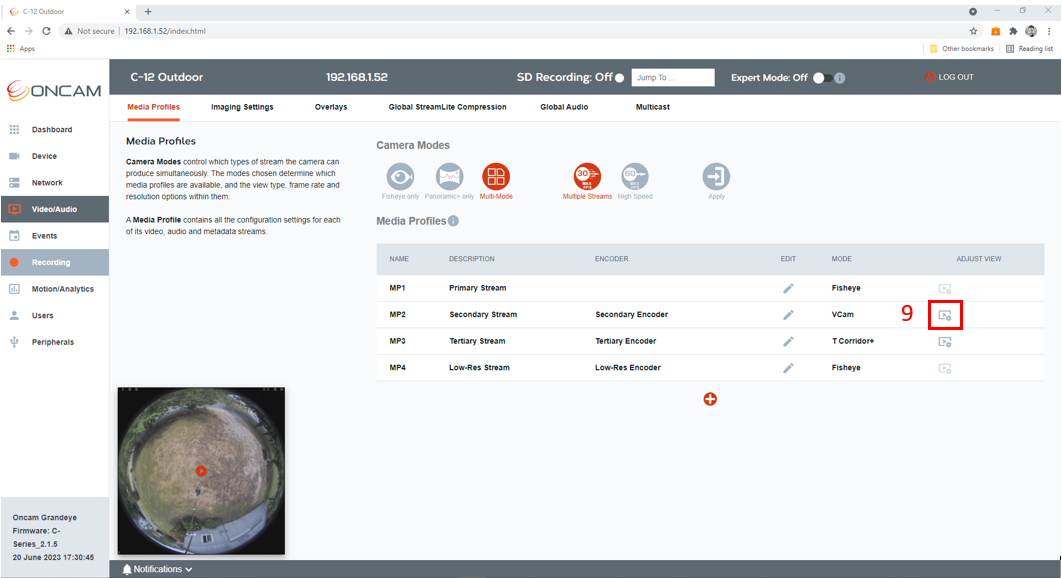

9. Select the Adjust View icon next to the media profile that is set to V-Cam.

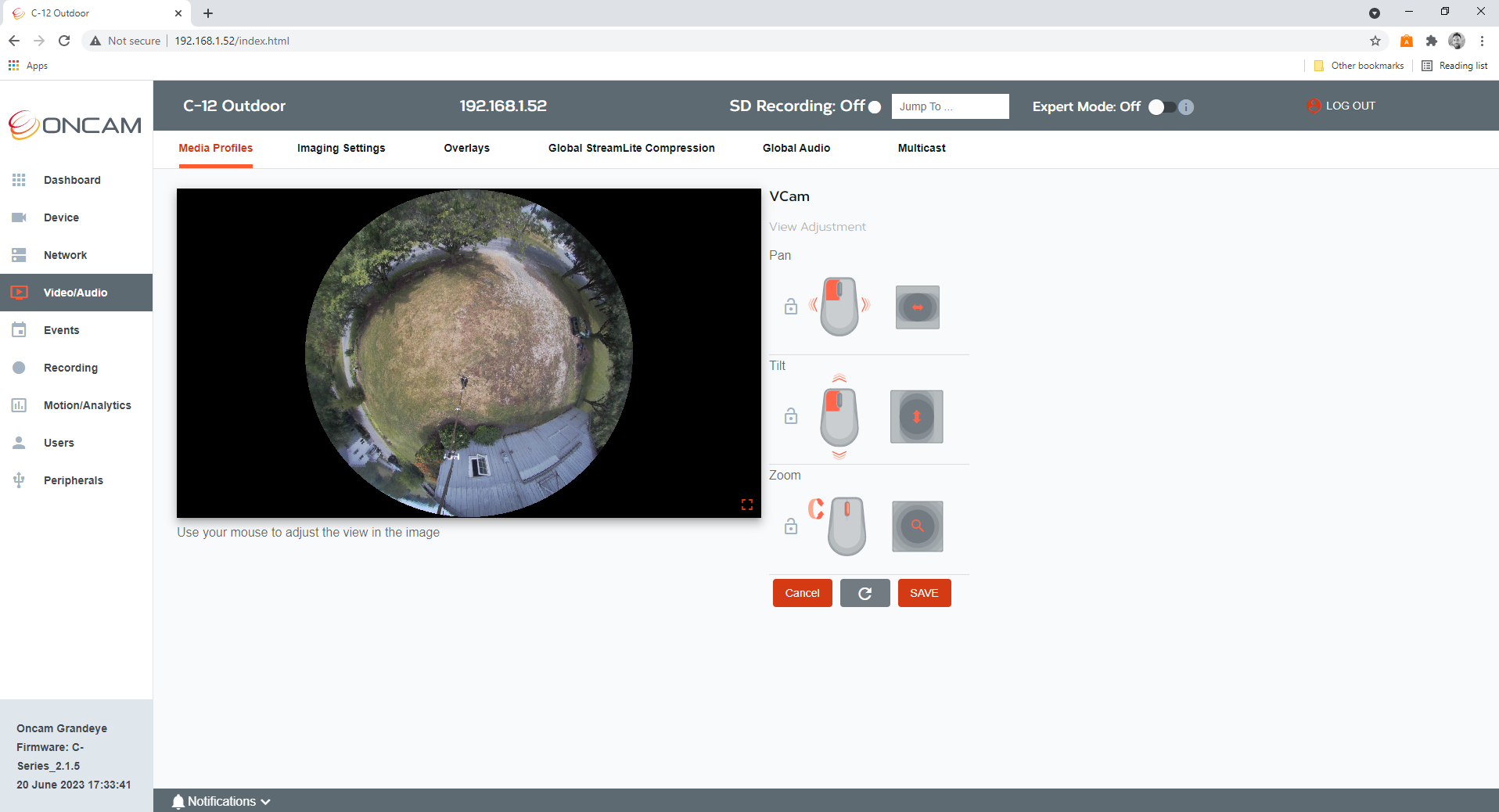

The fisheye image should appear.


Use your mouse to drag the image and adjust to the desired angle.

Use the scroll wheel to zoom in or out.

When the camera is adjusted to the desired view, click SAVE.
