This article applies to the following cameras:
C-08
C-12
Configuration Steps

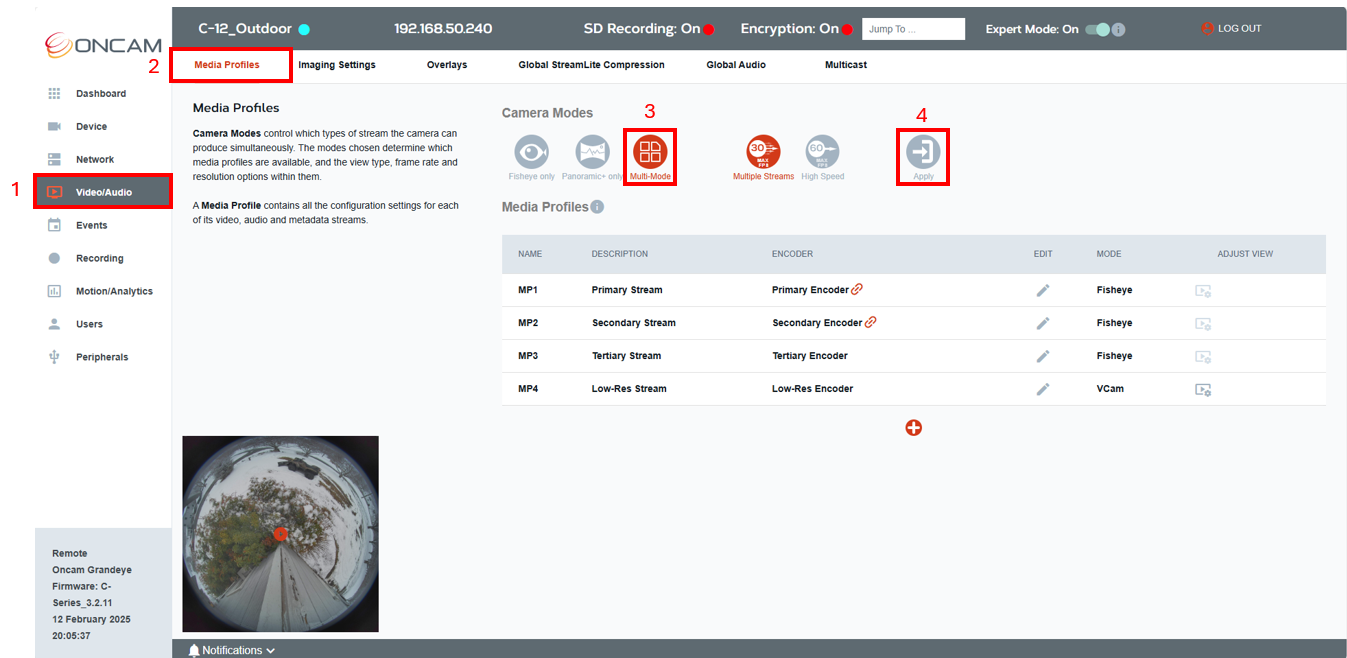

1. Select Video/Audio.
2. Select Media Profiles.
3. Under Camera Modes select Multi-Mode.
4. Click Apply.
Navigate back to Video/Audio > Media Profiles.

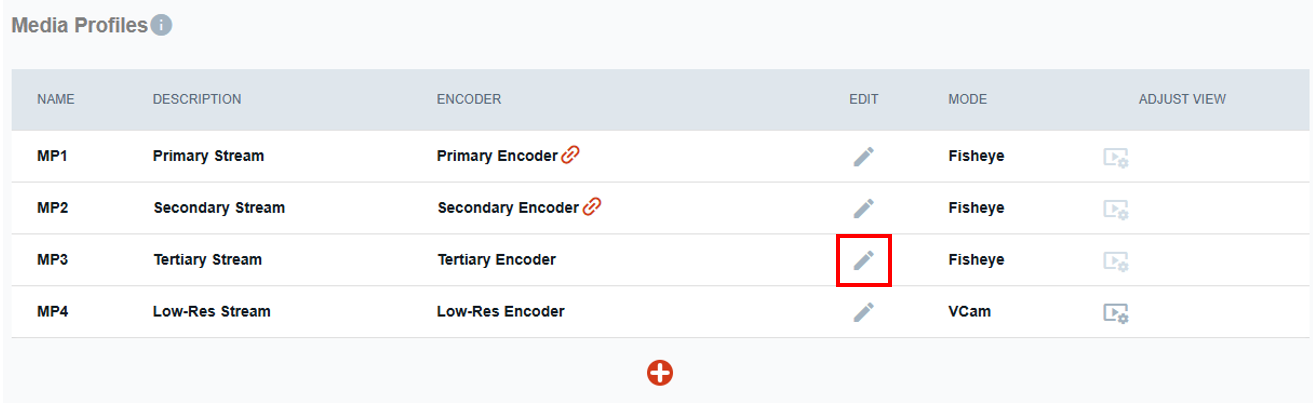

5. Click the Edit icon beside the Media Profile that you want to change to T-Corridor mode.

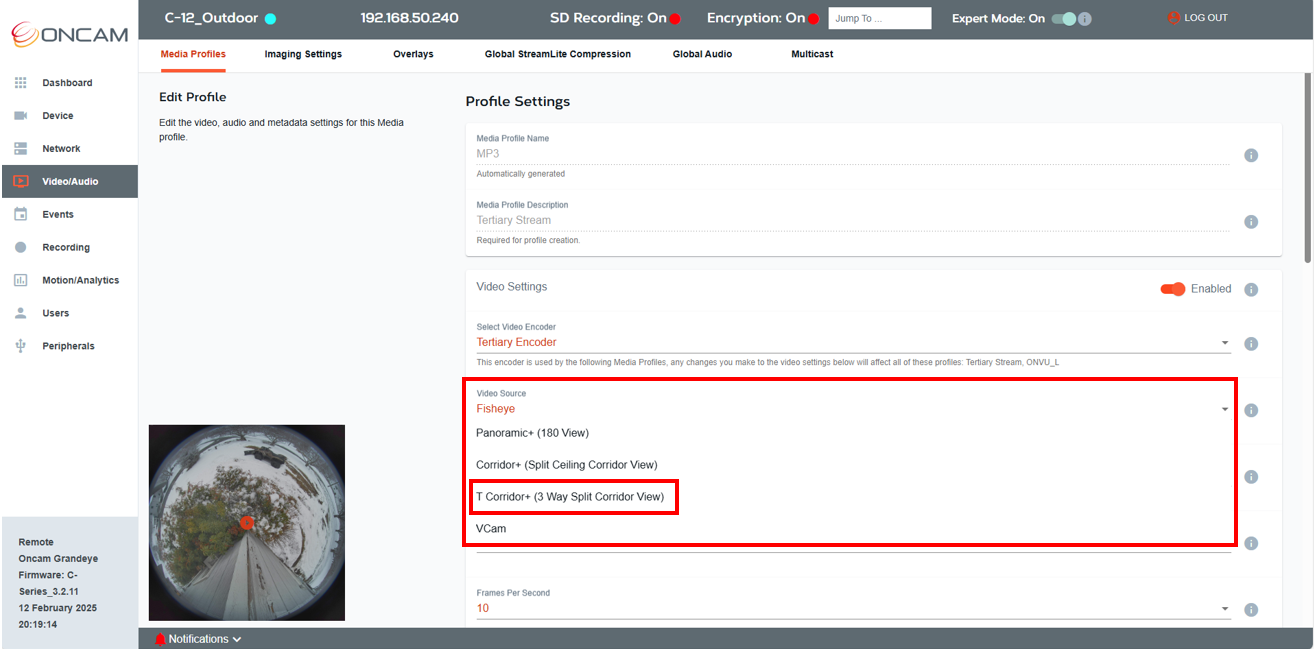

6. Under the Video Settings section click the drop-down menu under Video Source. Select T-Corridor+.
7. Scroll down to the bottom of the page and click Save Changes.

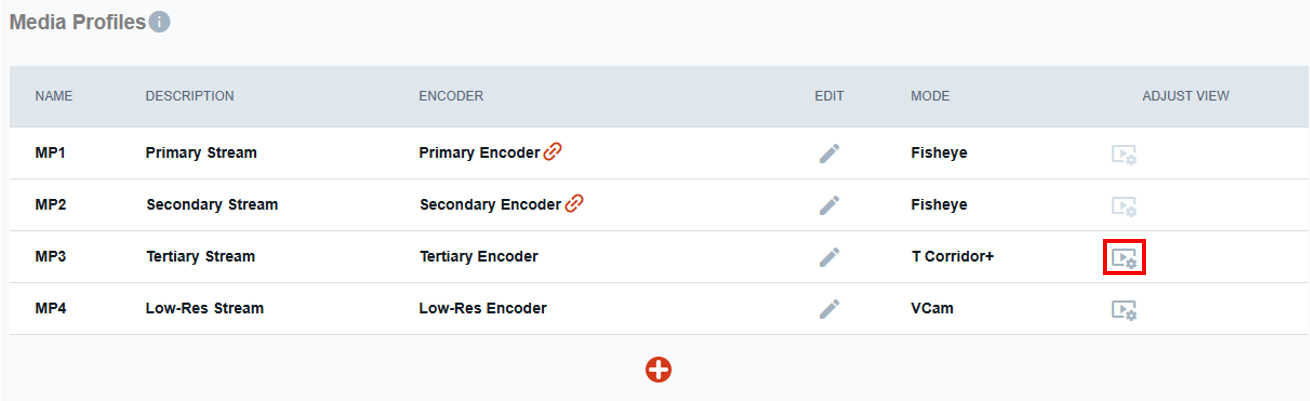

8. Click on the Adjust View icon beside the Media Profile to be adjusted.

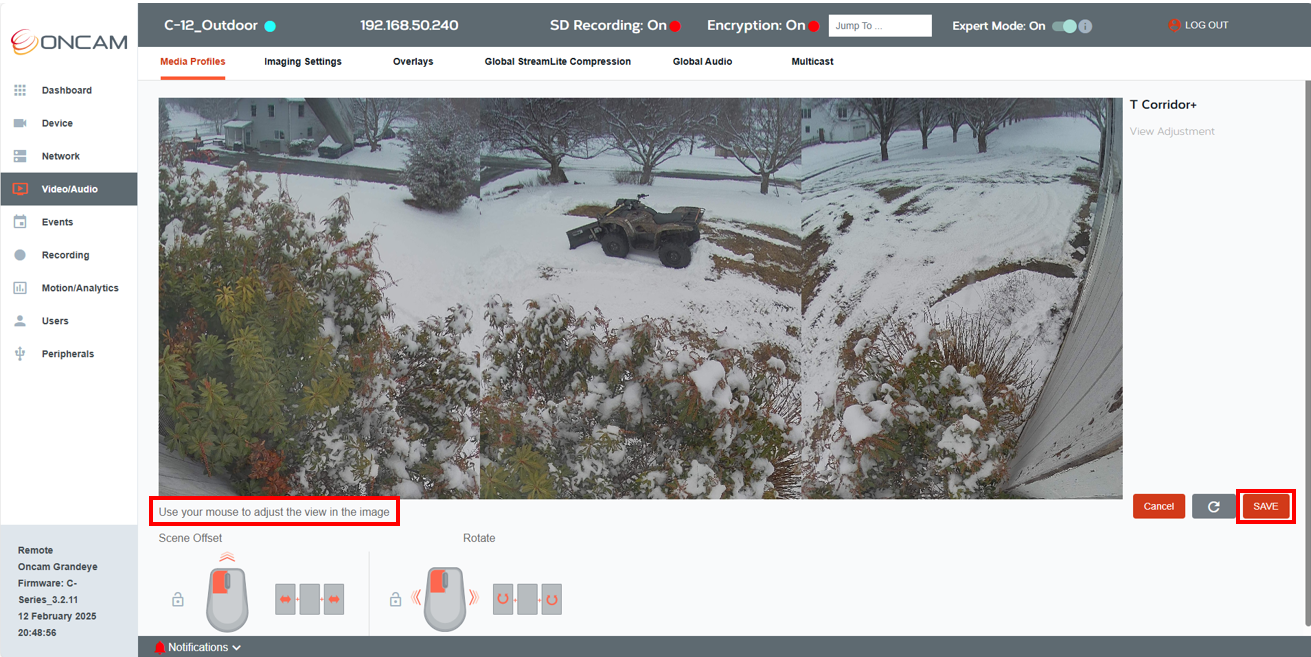

9. Use the mouse to adjust the view in the image, then click Save.
