This article applies to the following cameras:
C-08
C-12
Configuration Steps

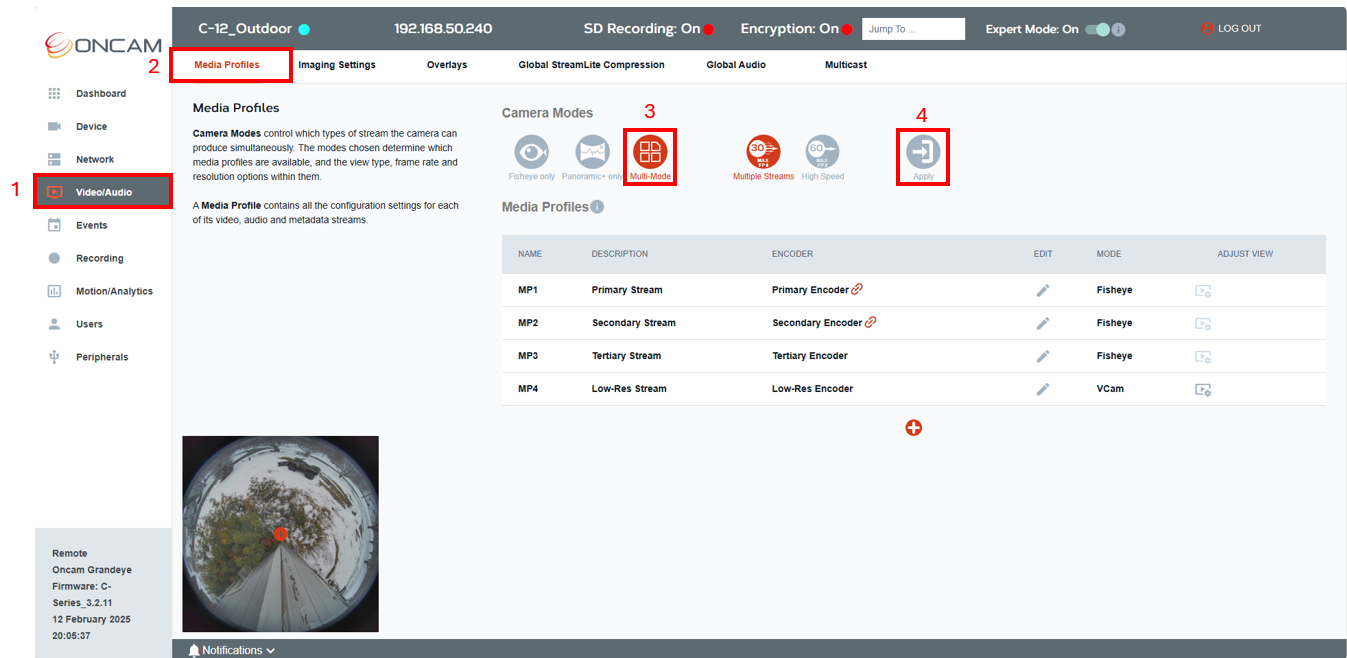

1. Select Video/Audio.
2. Select Media Profiles.
3. Under Camera Modes select Multi-Mode.
4. Click Apply.
Navigate back to Video/Audio > Media Profiles.

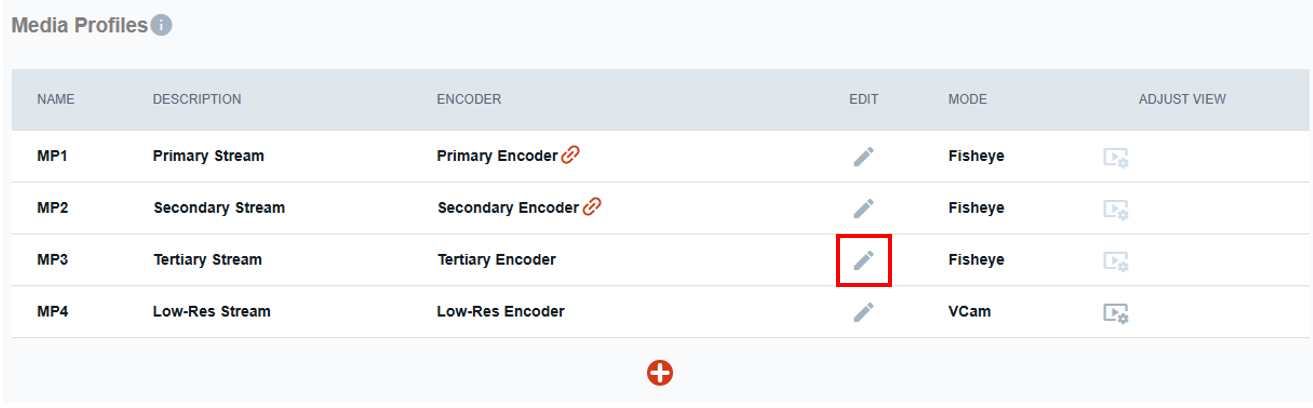

5. Click the Edit icon beside the Media Profile that you want to change to Corridor+ mode.

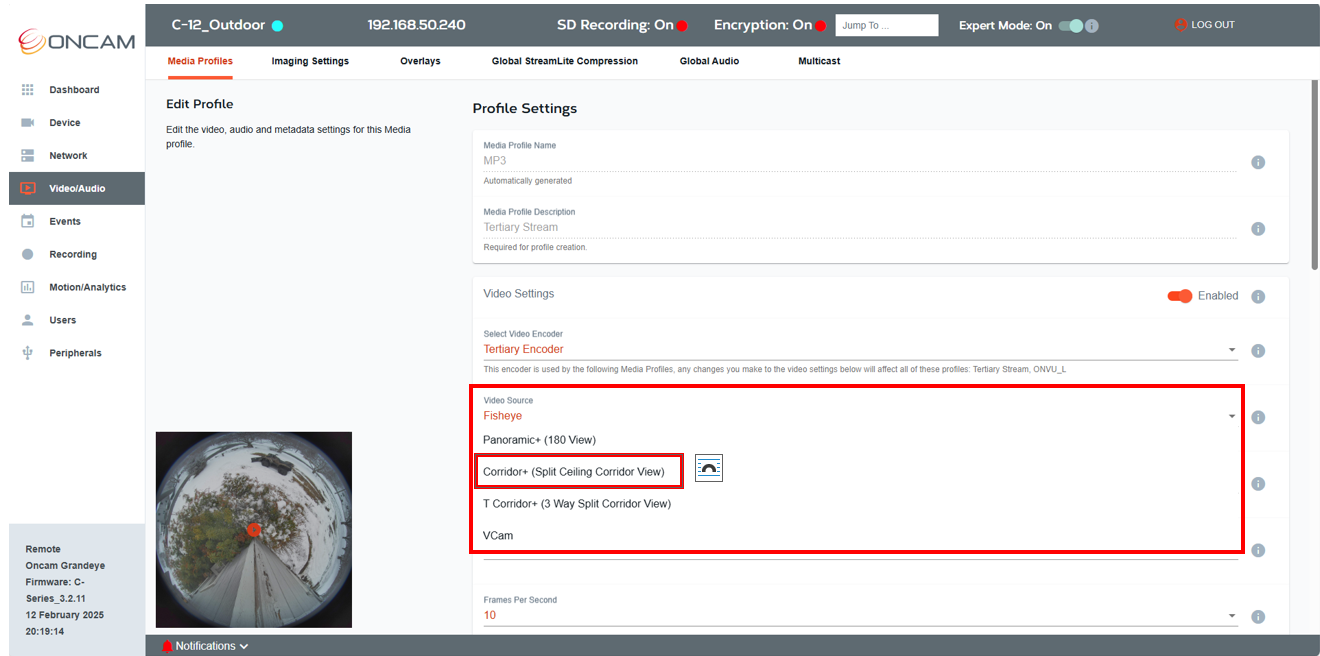

6. Under the Video Settings section click the drop-down menu under Video Source. Select Corridor+.
7. Scroll down to the bottom of the page and click Save Changes.

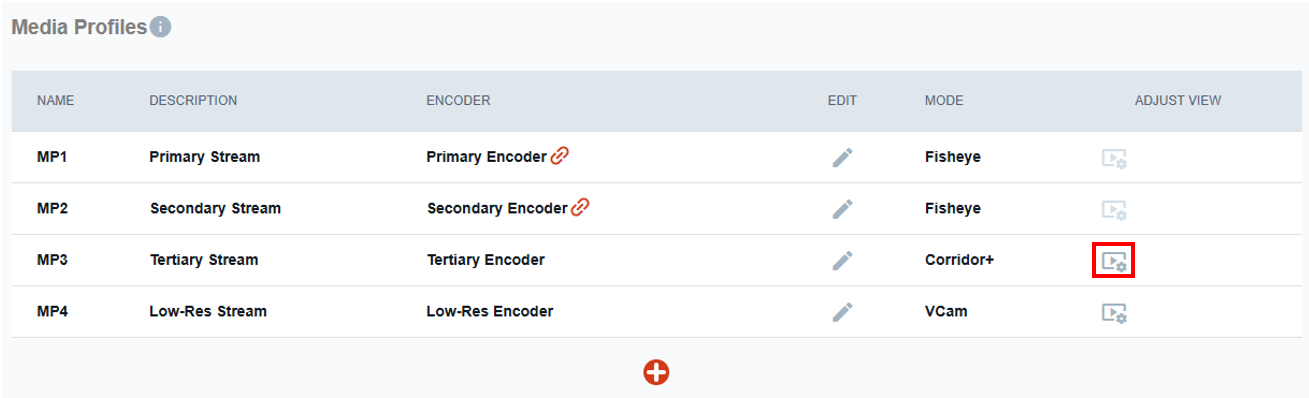

8. Click the Adjust View icon beside the media profile that needs adjustment.

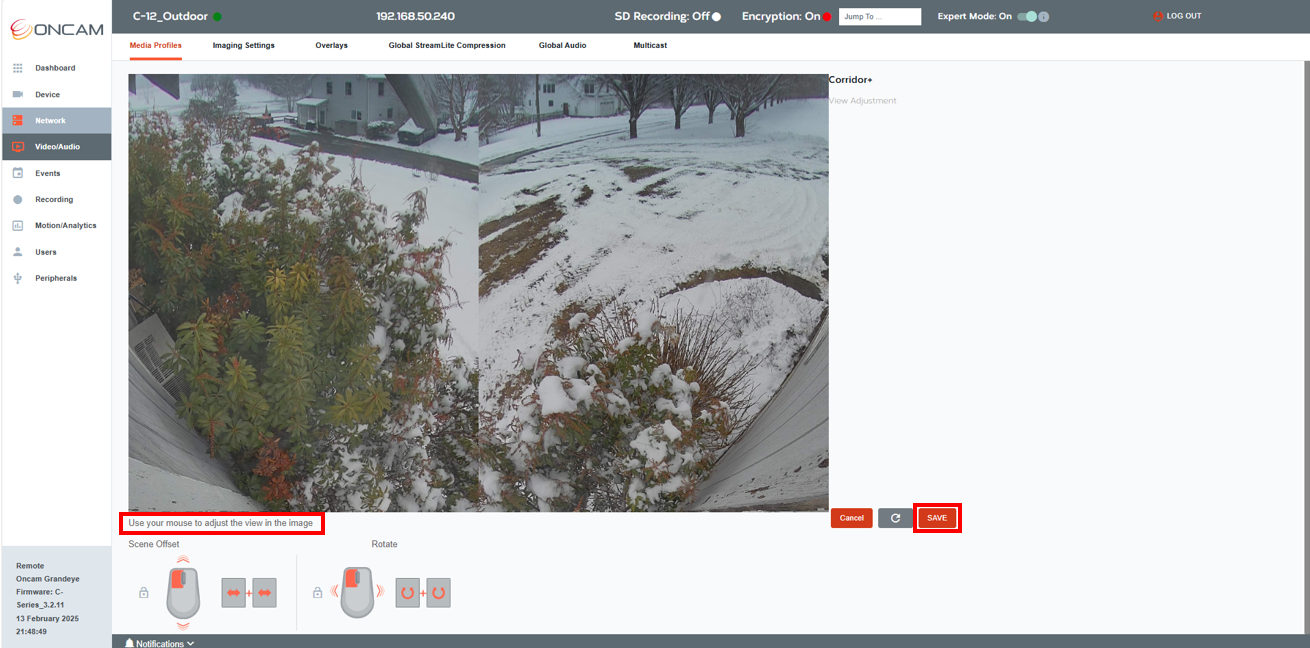

9. Use the mouse to adjust the view in the image and then click Save.
