This article applies to the following cameras
C-12
C-08
-

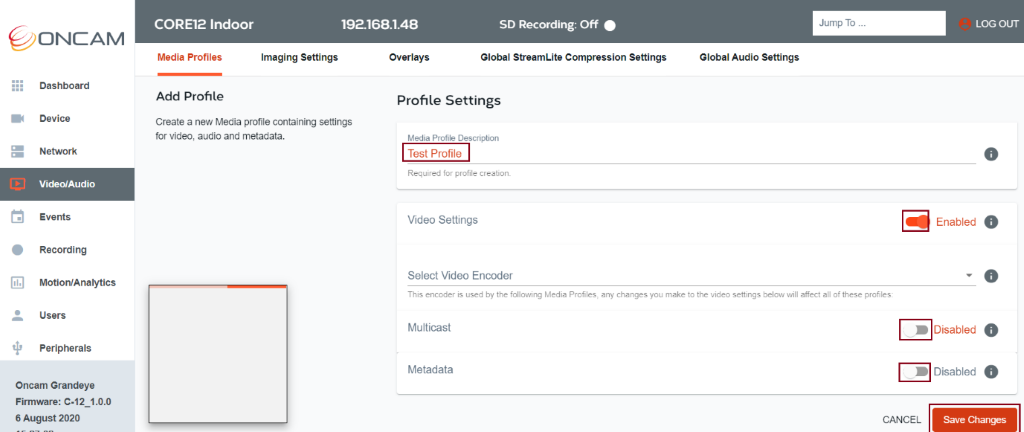

On the camera web interface, click Video/Audio
-
On the desired Media Profile name, click on Edit
-
On the selected Media Profile Description, set an identifiable profile name.
-
From the drop – down list, select the desired video encoder
Note: Any changes you make to the video settings will affect any other profiles that use this encoder. The list of associated profiles will be displayed once an encoder is selected.
-
Select the desired Video Compression Type.
-
Choose the desired Video resolution.
-
Select your Frame rate.
Note: If you want to request a stream at maximum frame rate (60fps/50fps) and a maximum resolution (2992 x 2992) on the primary encoder, only a single stream will be supported.
-
On Multicast, swipe the radio button to the right if required.
-
On Metadata, swipe the radio button to the right to add metadata streaming to your profile.
-
Click on Save Changes
