This article applies to the following cameras
C-12
C-08
Note: A total of 6 new Media profiles can be created in addition to the four Media Profiles.
-

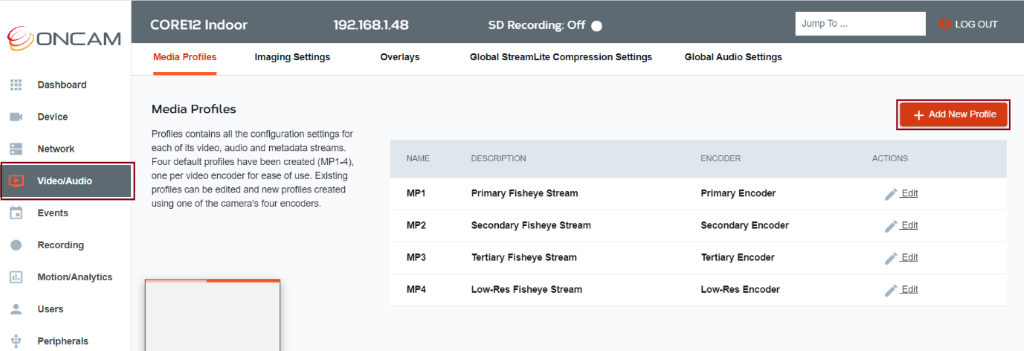

On the camera web interface, click Video/Audio
-
On the top right-hand side, click Add New Profile
-
On the Media Profile Description, set an identifiable profile name.
-
On the Video settings, swipe the radio button to the right to add streaming to your profile.
Note: the video settings are disabled by default.
-
From the drop – down list, select the desired video encoder
Note: Any changes you make to the video settings will affect any other profiles that use this encoder. The list of associated profiles will be displayed once an encoder is selected.
-
On Multicast, swipe the radio button to the right if required.
-
On Metadata, swipe the radio button to the right to add metadata streaming to your profile.
-
Click on Save Changes
