C-Series - Adding  Privacy Regions

This article applies to the following cameras

C-12

C-08

1. Log into the camera’s web interface

2. On the left-hand menu, click on Video/Audio

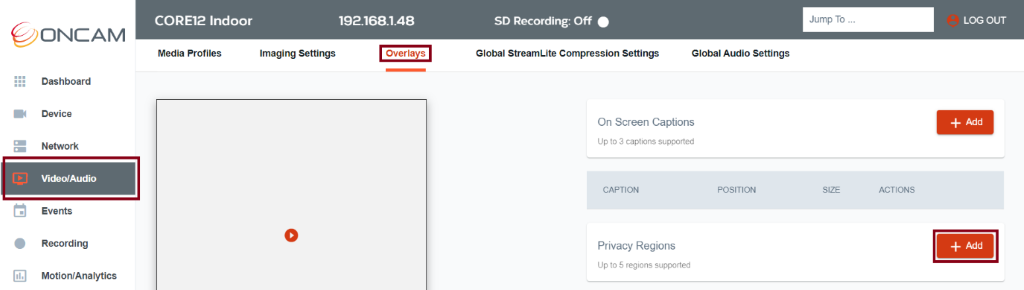

3. On the top menu, click on Overlays

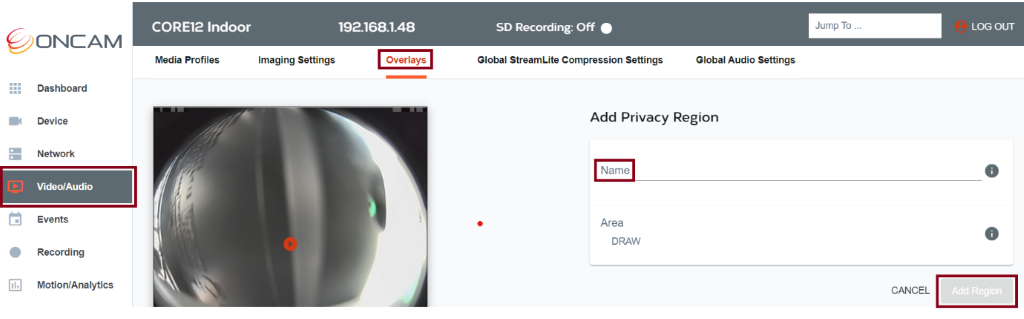

4. On the Name, enter an easily identifiable private region zone.

5. Under the Area, click to Draw.

6. Move the mouse cursor over the image and begin creating the polygonal privacy region. Every left click creates a point in the region. A minimum of 3 points are required.

Note: The privacy region will be applied to live and recorded stream, the analytics stream and motion detection regions.

7. Click on Add Region to save configuration
